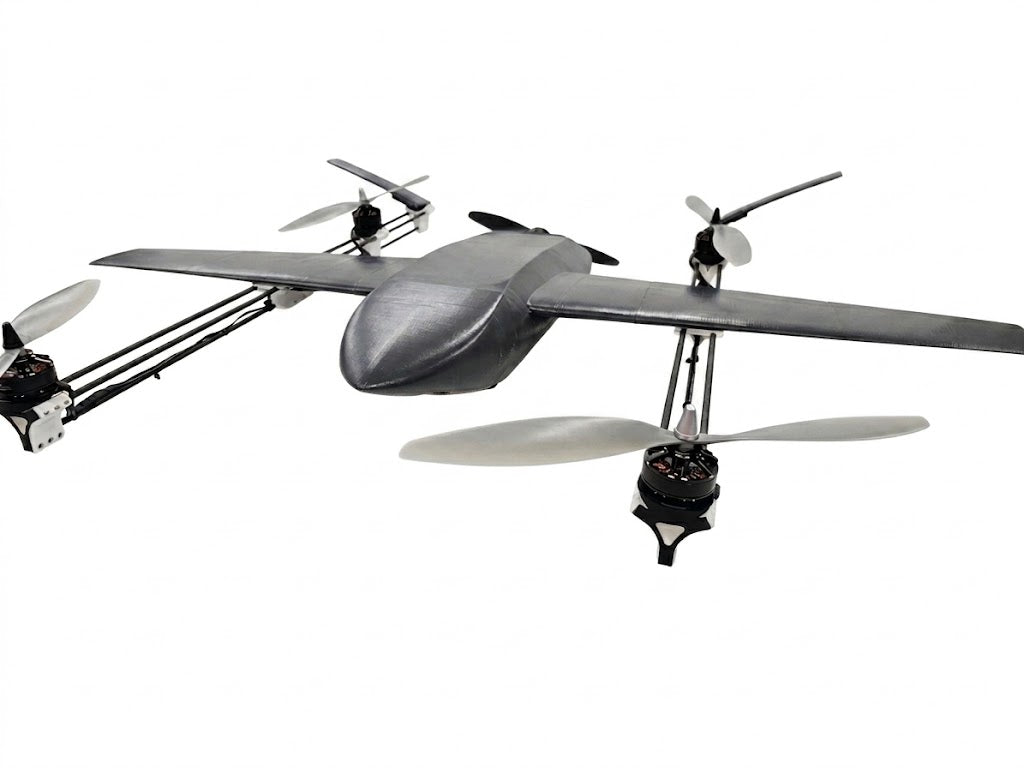

Hyperion — Large 5-Motor VTOL UAV

The Hyperion is an advanced, hybrid VTOL (Vertical Take-Off and Landing) UAV designed to combine the hover agility of a multirotor with the long-range efficiency of a fixed-wing aircraft. Engineered with a lightweight 3D-printed airframe, high-strength carbon fiber reinforcement, and industrial-grade thermal optical capabilities, it is built for long-duration missions, reconnaissance, and high-performance autonomous flight.

Key Technical Specifications

• Aircraft Type: 5-Motor Hybrid VTOL Fixed-Wing UAV

• Powertrain: 4x Vertical Lift Motors (EMAX MT4008 470KV) + 1x Rear Horizontal Pusher Motor

• Propeller Configuration: 4x 12-inch Propellers (2x CW, 2x CCW) for lift | 1x 7-inch Propeller (CW) for forward cruise

• Structure & Framing: 6x 1m Carbon Fiber Rods (6mm OD, 4mm ID) with custom ASA/PA6 modular connectors

• Primary Material: High-efficiency Bambu Lab ASA Aero (printed with 0.6mm nozzle) for optimal weight-to-strength ratio

• High-Stress Components: Industrial SLS PA12 Motor Mounts featuring integrated cooling air channels and breakaway points to protect the frame during hard landings

• Payload Capacity: 0.5 kg to 1.5 kg (designed for full compatibility with Axisflying Thermal Cameras or a custom PLA nose cone)

• Flight Controller Support: Optimized for 5-motor VTOL configurations (Recommended: SpeedyBee F405 Wing)

• Power System: 4S2P High-Capacity Battery Pack via XT90 heavy-duty power connectors

• Hardware & Assembly: Full M3 heat-set insert integration, PU-bonded body segments, weather-sealed coating, and silicon-extended wiring

Performance Highlights

• Vertical Launch & Land: Eliminates the need for a runway, catapult, or hand-launching.

• Extended Flight Time: Efficient fixed-wing cruising offers up to 45 minutes of continuous flight time depending on payload configuration.

• Modular Payload Nose: Easily swappable optical payload bay for thermal imaging, standard FPV cameras, or lightweight survey gear.
